Odette Transport Label 3 (OTL3)
The Odette OTL3 (Odette Transport Label 3) is a standardized shipping label format used primarily in the automotive industry for logistics and supply chain management. The main attributes of the report are:
| Attribute | Value |
|---|---|
| Report Number | 5309940 |
| Norm | Odette OTL 3 |
| Version | 3.1 |
| Link | Odette |
Structure

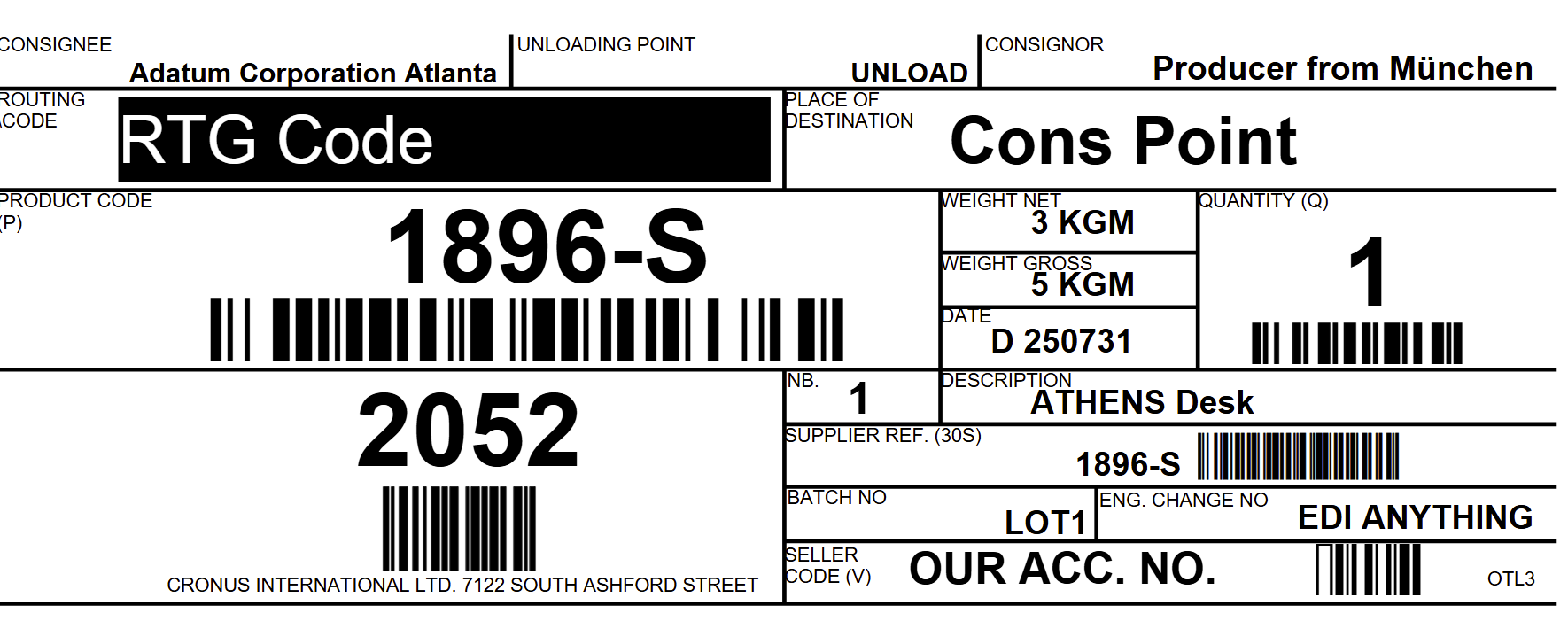

Below is an example of the OTL3 label with field descriptions.
| Field | Source Field | Source Table | Comment |
|---|---|---|---|
| Consignee | Ship to Name + City | Sales Shipment or Transfer Order | |
| Unloading Point | EDI Unloading Point | Transport Label | |
| Consignor | Label Producer Corp. Name & City | EDI Setup | |
| Routing Code | Routing Code | Transport Label | |
| Place of Destination | EDI Place of Consumption | Transport Label | |
| Product Code | Item Reference No. | Transport Label | |
| Security Sensitive Symbol | Item | Security Sensitive | |
| Net Weight | Net Weight | Transport Label | In KGM rounded to full kilos |
| Gross Weight | Gross Weight | Transport Label | In KGM rounded to full kilos |
| Date | Date | Transport Label | |
| Filling Quantity | Filling Quantity | Transport Label | With Barcode |
| Package No. | Transport Label No. | Company Information | Company Address |
| Number of Packages | Number of Packages | Transport Label | |
| Description | Description | Transport Label | |
| Supplier Ref. | Item No. | Transport Label | With Barcode |
| Batch No. | Batch No. | Transport Label | Only Available when one Lot exists in Package |
| Engr. Change | Drawing No. and Drawing Index | Transport Label | Separated with / when Index exists |
