Setup Artifacts to Import on Startup

Artifacts are specified in a different configuration file whether you're using Alpaca with GitHub or Azure DevOps:

Artifacts are configured in containerConfigurations.artifacts in alpaca.json config file. The defined artifacts are automatically installed in the dev containers during the container startup. Artifacts defined in the default, current, NextMajor or NextMinor container configurations are also automatically installed for build containers started from the respective AL-Go workflows.

Four types of artifacts are supported:

  1. Artifacts from a URL or the Alpaca fileshare
  2. Artifacts from a NuGet feed
  3. Artifacts from an Azure DevOps Artifact feed (only for Alpaca on Azure DevOps)
  4. Artifacts from a product feed

URL or Alpaca fileshare

  1. Open the Alpaca fileshare. Please contact the Alpaca support if you don't have access yet.
  2. Copy your artifact to the fileshare. One option to organize your folder structure could look like this, but if you have some other structure already in place in your organization, it also might be a good idea to use that:
    • product-artifacts used by multiple projects: /common/<product>
    • artifacts related to a customer project: /<customer-name>/<project-name>
  3. Add the artifact to artifacts in your respective configuration file (see above):
{
    "artifacts": [
        {
            "type": "url",
            "name": "myapp",
            "version": "1.2.3.4",
            // fileshare paths can reference a file or ZIP file
            "url": "C:\\azurefileshare\\my.app",
            "target": "app" // can also be DLL, RapidStart, Fonts, etc.
        },
        {
            "type": "url",
            // URLs MUST reference a ZIP file
            "url": "https://my.blob.core.windows.net/test/myapp/myapp_1.2.3.4.app.zip?sv=2019-02-02&...",
            "target": "app"
        }
    ]
}

Note:

  • You need to escape the folder separator \ by using \\ because the value must be a JSON-String.
  • The fileshare path always is c:\azurefileshare inside of a container. That means that if you place a file fantastic-app.app in the root of your fileshare, you need to reference it as c:\\azurefileshare\\fantastic-app.app.
  • Fileshare artifacts can be a "normal" files or an archive (.zip extension) which will be extracted during the container startup.

Parameters

Element Type Value
type string mandatory for GitHub The type of the artifact. Must be url for fileshare/URL artifacts.
name string optional The name of the artifact. Informational only.
version string optional The version of the artifact. Informational only.
url string mandatory The path or url to download the artifact.
target string mandatory Specify the Artifact Target folder in the container file system and import action.
targetFolder string optional This folder is used for "target": "dll" as optional subfolder: <serviceTierFolder>/Add-Ins/<targetFolder>
appImportScope string optional Specify the import scope for apps. The value can be Global (default) or Tenant.
appImportSyncMode string optional Specify the import sync mode for apps. The value can be Add (default), Clean, Development or ForceSync.
ignoreIn string[] optional Specify in which container setup this artifact should be ignored. The value is an array of: dev and/or build. (see also cosmo.json)
dependsOn string optional Specify the dependency of an artifact. The value can be missing (default) or App.

Artifacts with a dependecy will still be downloaded on container start but only installed by the build pipeline after the dependency (e.g. App) was installed.

NuGet feed

By default all Microsoft NuGet feeds are available. Custom nuget feeds can either be configured globally, per-project or per-user by specifying custom nuget feeds in the Alpaca settings in VS Code.

{
    "artifacts": [
        {
            "type": "nuget",  // optional, default when not specified
            "name": "CosmoConsult.COSMORental.b945e3cd-da15-4575-990e-37ff46875f27",
            "version": "5.2.270944.0"
        }
    ]
}

Parameters

Element Type Value
type string mandatory for Azure DevOps Type of the artifact, use nuget.
name string mandatory The name of the artifact.
version string optional The version of the artifact. (Latest - when not specified)

Azure DevOps Artifact feed

__ This is only available for Alpaca on Azure DevOps __

  1. Grant read access to the feed for the respective users as well as the pipelines by adding the Project Collection Build Service (<org-name>) group in Azure DevOps. This group has access to all feeds in the organization.

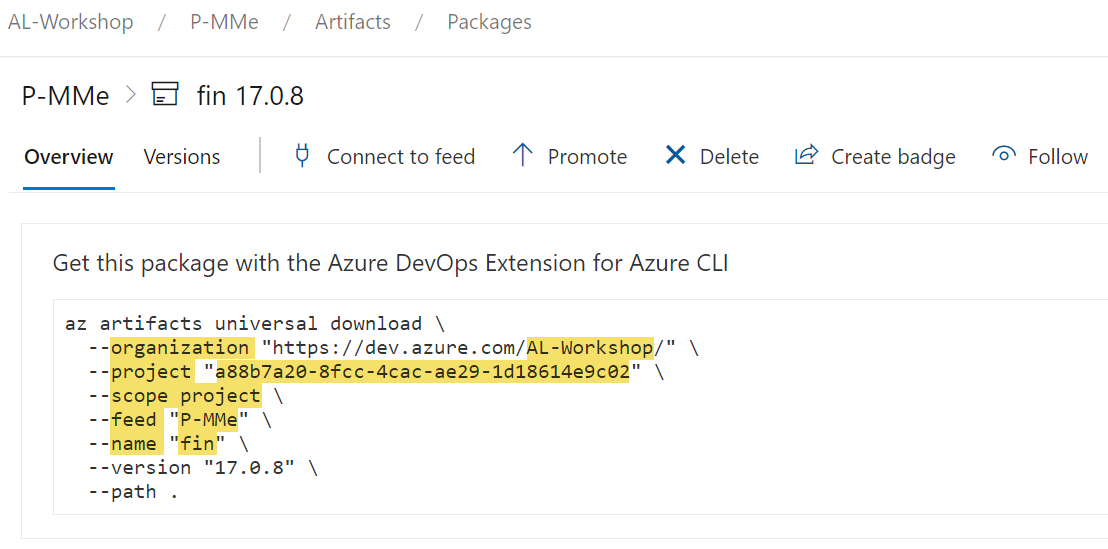

  2. Get the needed information for your artifact feed Feed Artifact

  3. Add the Artifact to artifacts in your configuration file:

     {
     // ...
     "devopsArtifacts": [
         {
             "organization": "AL-Workshop",
             "project": "a88b7a20-8fcc-4cac-ae29-1d18614e9c02",
             "scope": "project",
             "feed": "P-MMe",
             "name": "fin"
         }
     ],
     // ...
 }

Note:

  • Only upack artifacts are supported.
  • The upack artifact name is always lower case.
  • Use the project ID for project
  • When you have a project-scoped feed in a different project of the same organization, follow the instructions here.

Parameters

Element Type Value
organization string mandatory The organization name of the feed.
project string optional, mandatory The project id of the artifact feed (mandatory for project scoped feeds).
feed string mandatory The name of the artifact feed.
name string mandatory The name of the artifact.
scope string optional The scope of the feed can be organization and project (default).
version string optional The version of the artifact. (Latest - when not specified)
view string optional The view (promotion-level) of the artifact determines which version is used.
type string optional Specify the type of the artifact feed. COSMO uses upack (default).
target string optional Specify the Artifact Target folder in the container file system and import action.
appImportScope string optional Specify the import scope for apps. The value can be Global (default) or Tenant.
appImportSyncMode string optional Specify the import sync mode for apps. The value can be Add (default) , Clean, Development or ForceSync.
ignoreIn string[] optional Specify in which container setup this artifact should be ignored. The value is an array of: dev and/or build. (see also cosmo.json)
dependsOn string optional Specify the dependency of an artifact. The value can be missing (default) or App.

Artifacts with a dependecy will still be downloaded on container start but only installed by the build pipeline after the dependency (e.g. App) was installed.

Product feed

The use case for the product feed is to enable users and pipelines/workflows to consume artifacts managed in a central feed. This is mainly used for feeds hosting intelectual property. As a bonus you can use the version overview in the VS Code Extension to browse your regularly used artifacts.

  1. Find out which name the IP artifact has and which version you want to use
  2. Add the Artifact to ipArtifacts in your configuration file
{
    "artifacts": [
        {
            "type": "ipartifact",
            "name": "alloy-management",
            "version": "2.2.*"
        },
        {
            "type": "ipartifact",
            "name": "commission",
            "version": "2.1.36626"
        }
    ]
}

Parameters

Element Type Value
type string mandatory for GitHub The type of the artifact. Must be url for fileshare/URL artifacts.
name string mandatory The name of the artifact.
version string optional The version of the artifact. (Latest - when not specified). The version can include wildcards ("*") at the end, e.g. 2.* or 2.1.*
type string[] optional Specify the type of the artifact you want to use as an array. For now, you only get the full app with type "app", but in the future test apps, rapidstart packages or runtime packages might follow.
ignoreIn string[] optional Specify in which container setup this artifact should be ignored. The value is an array of: dev and/or build. (see also cosmo.json)
dependsOn string optional Specify the dependency of an artifact. The value can be missing (default) or App.

Artifacts with a dependecy will still be downloaded on container start but only installed by the build pipeline after the dependency (e.g. App) was installed.

Artifact Target

The target specifies the target folder and finally what should hapen with the artifact.

Target(s) Destination Import
bak --- The first (not ignored) bak Artifact is used as database backup file during container creation.
saasbak --- Backup file from an online SaaS environment, converted from bacpac to bak, cannot be combined with bak
dll or add-ins <serviceTierFolder>/Add-Ins/<targetFolder> The Artifact will be imported as an App
font or fonts c:/fonts The Artifact will be imported as an App
fob, app, rapidStart, ... C:\run\my\apps The Artifact content will be imported as fob, app or rapid start package depending on the file extension.

The order of import is:

  1. DLL(s) and Add-Ins
  2. Font(s)
  3. FOB(s)
  4. App(s)
  5. Rapid Start Package(s)

Examples

Add Fonts as Artifacts

Adding an additional font to a container require you to add also the default fonts as an additional artifact. This is because there are not fonts installed in the container and your Business Central Reports might use your additional font as default font for your reports.

Here is an example how to add additional fonts as artifacts. Please note the ignoreIn setting as you probably won't need the fonts in a build pipeline and as they require a restart of the service tier, they make the pipeline slower and can cause issues with symbol loading in hybrid dev setups

{
    // ...

    "artifacts": [
        {
            "type": "url",
            "name": "Default-Fonts",
            "url": "c:\\azurefileshare\\common\\default-fonts.zip",
            "target": "fonts",
            "ignoreIn": ["build"]
        },
        {
            "type": "url",
            "name": "Additional Fonts for Barcode Printing",
            "url": "c:\\azurefileshare\\myProject\\my-additional-fonts.zip",
            "target": "fonts",
            "ignoreIn": ["build"]
        }
    ]

    // ...
}
